PAR213476PB
Union 2134E 5 Lever Deadlock 80mm Polished Brass BS3621

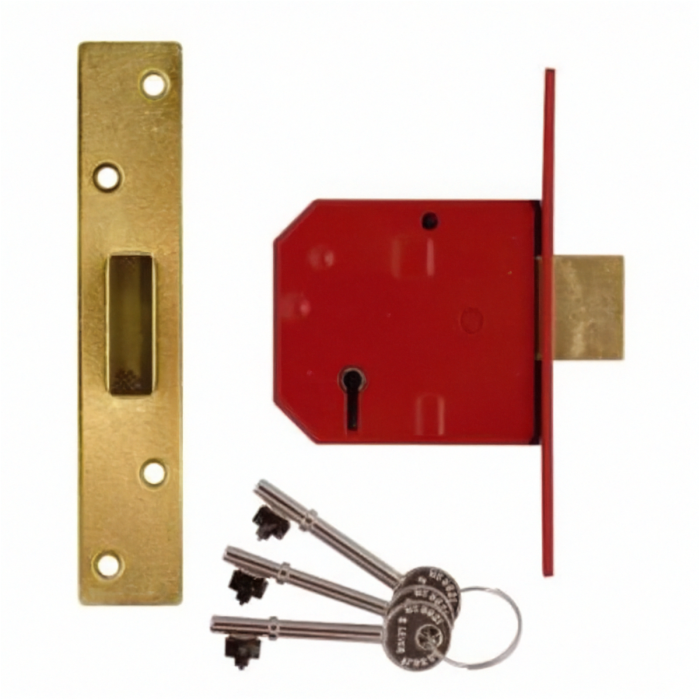

Main image
Click to view image in fullscreen
![]()
Union 2134E 80MM P.Brass 5 Lever BS Deadlock Door Lock
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Day | When an order is placed before 12pm on certain items |
| Within one working week | When an item is not custom but not eligible for next day |
| Within two working weeks | When an item needs to be made with customisations |
View Delivery Information
£48.52
Incl. VAT
£40.43
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description
Union 2134E Polished Brass 80mm 5 Lever Deadlock BS3621 & CE Marked
The UNION BS 5 lever mortice range is the tried and tested solution for high security applications
Application uses
- For timber doors hinged on the left or right
- Suitable for doors up to 54mm thick
Features
- Anti-pick, anti-saw and anti-drill security features for resistance against attack
- Extended 20mm deadbolt for secure positive deadlocking and additional resistance against attack
- Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door
- Security box striking plate
- Anti-pick and keyhole protection prevents forced entry by picking
- Deadbolt: Brass, with hardened steel rollers
- Hardened steel pins provide resistance to attack from sawing
- Supplied with 3 nickel plated keys
- 15 Year Guarantee
Operation
- Deadbolt locked or unlocked by the key from either side
Sizes
- Case Size: 79.5mm (3")
- Backset: 57.5mm
- Faceplate: 145mm x 25mm
- Case height: 71.5mm
Finish
- Case: Steel, red powder coat
- Forend: Brass plated
- Striking Plate: Finished to match forend
Standards
- Tested to BS3621:2007
- CE Marked
- Secured by Design approved - recommended by the Police
- EN 1634-1 assessed for use on 60 minutes timber fire doors
- EC Certificate number: 0832-CPD-6038
Not sure if this mortice lock is right for your requirements?
If you are not sure if this mortice lock is right for your requirements please contact our friendly team today.
Specification
| Dimensions | 71.5 (H) x 79.5 (D) |
|---|---|
| Guarantee | 15 Year |
| Lock Type | Mortice Deadlock |
| Lock Operation | Lever |
| Lock Backset | 57mm |
| Lock Centres | N/A |
| Follower Size (mm) | 0 |
| Faceplate Width | 25mm |
| Environmental Suitability | All |
| Mechanism | Dead Lock |
| Door Material Suitability | Wood |
| Max Door Thickness (mm) | 54 |
| Forend Finish | Polished Brass |
| Security Standards | BS3621:2007 |
