Union 2234E 5 Lever Sashlock 67mm Polished Brass BS3621
Main image
Click to view image in fullscreen
![]()

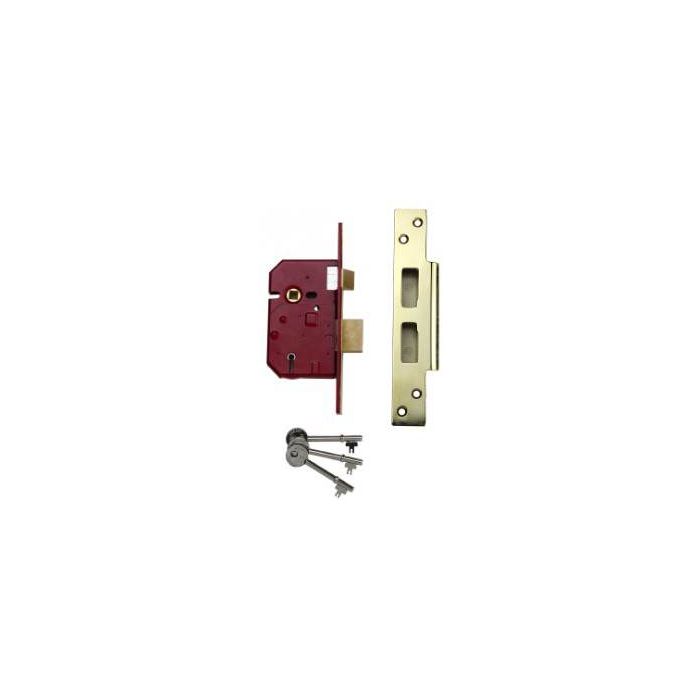

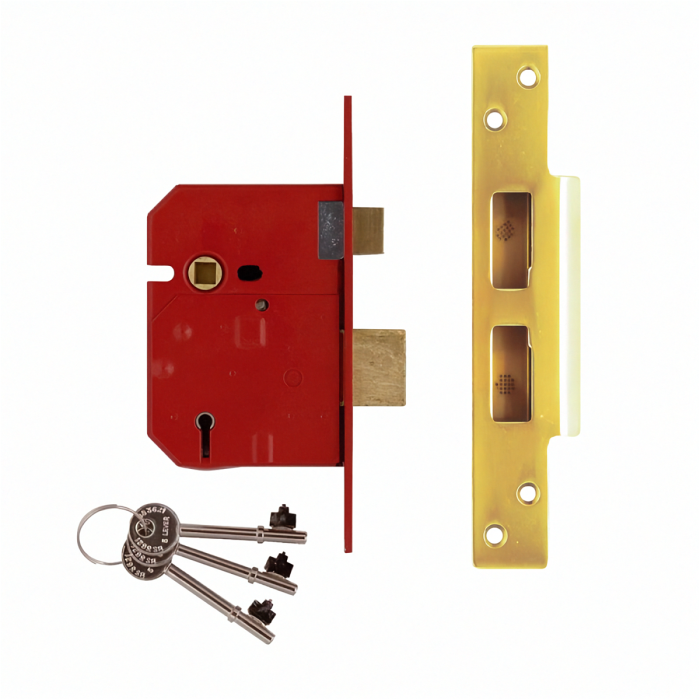

Union 2234E 67MM P.Brass 5 Lever BS Sash Door Lock
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Day | When an order is placed before 12pm on certain items |
| Within one working week | When an item is not custom but not eligible for next day |
| Within two working weeks | When an item needs to be made with customisations |
View Delivery Information
£52.45
Incl. VAT
£43.71
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description
Union 2234E Polished Brass 67mm 5 Lever Sashlock BS3621 & CE Marked
The UNION BS 5 lever mortice range is the tried and tested solution for high security applications
Application uses
- For timber doors hinged on the left or right
- For doors requiring key & lever handle operation
- Suitable for doors up to 54mm thick
Features
- Anti-pick, anti-saw and anti-drill security features for resistance against attack
- Extended 20mm deadbolt for secure positive deadlocking and additional resistance against attack
- Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door
- Pierced to accept bolt through furniture
- Security box striking plate
- Anti-pick and keyhole protection prevents forced entry by picking
- Latch Bolt: Brass, reversible
- Reversible latch bolt from outside of case
- Deadbolt: Brass, with hardened steel rollers
- Hardened steel pins provide resistance to attack from sawing
- Follower: Brass, 8mm square
- Supplied with 3 nickel plated keys
- 15 Year Guarantee
Operation
- Deadbolt locked or unlocked by the key from either side
- Latch bolt withdrawn by lever handle from either side
Sizes
- Case Size: 67mm (2.5")
- Backset: 45mm
- Faceplate: 177mm x 25mm
- Case height: 111mm
Finish
- Case: Steel, red powder coat
- Forend: Brass plated
- Striking Plate: Finished to match forend
Standards
- Tested to BS3621:2007
- CE Marked
- Secured by Design approved - recommended by the Police
- EN 1634-1 assessed for use on 60 minutes timber fire doors
- EC Certificate number: 0832-CPD-6038
Not sure if this mortice lock is right for your requirements?
If you are not sure if this mortice lock is right for your requirements please contact our friendly team today.
Specification
| Dimensions | 111 (H) x 67 (D) |
|---|---|
| Guarantee | 15 Year |
| Lock Type | Mortice Sashlock |
| Lock Operation | Lever |
| Lock Backset | 45mm |
| Lock Centres | 57mm |
| Follower Size (mm) | 8 |
| Faceplate Width | 25mm |
| Environmental Suitability | All |
| Mechanism | Sashlock |
| Door Material Suitability | Wood |
| Max Door Thickness (mm) | 54 |
| Forend Finish | Polished Brass |
| Security Standards | BS3621:2007 |
