CHU3G114080PB
Union 3G114E 5 Lever Deadlock 80mm Brass BS3621 (Chubb At Heart)

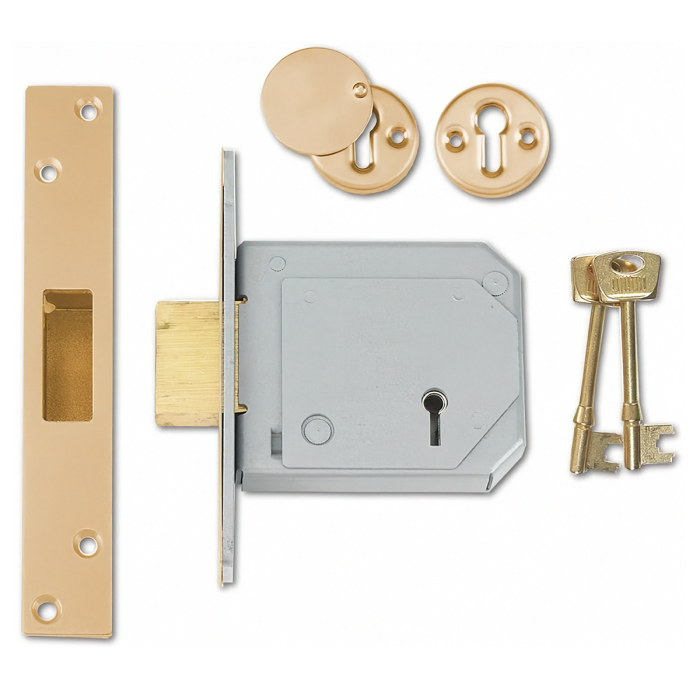

Main image
Click to view image in fullscreen
![]()
Union (Chubb At Heart) B-3G114E 80mm Brass 5 Lever Bs 3K Deadlock Door Lock
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £6.50 for small items, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£69.60
Incl. VAT
£58.00
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
-
+
See our full range:
Description
Union (Chubb At Heart) B-3G114E 80mm Brass 5 Lever BS3621 Deadlock
The UNION 3G114 BS 5 lever mortice lock is the ideal solution for high security applications
Application uses
- Approved by insurance companies and the Police
- For timber door hinged on the left or the right
- Keys are suitable for use on doors up to 50mm thick
Features
- Force resistant, anti drill, anti-pick and anti-saw security features
- Available with square forend and striking plate
- 20mm bolt throw
- Supplied with one plain escutcheon and one escutcheon with a cover plate, finished to match the faceplate/strike
- Deadbolt: Brass, with hardened steel rollers
- Keys supplied: Supplied with 3 keys
- 25 Year Guarantee
Operation
- Deadbolt locked or unlocked by key from either side
Sizes
- Case Size: 80mm (3")
- Backset: 53mm
- Faceplate: 133mm x 25mm
- Case height: 77mm
Finish
- Case: Steel, silver powder coat
- Forend: Polished brass
- Box Strike: Finished to match forend
Standards
- Tested to BS3621:2007
- CE Marked
- Secured by Design approved - recommended by the Police
- Insurance approved
Not sure if this mortice lock is right for your requirements?
If you are not sure if this mortice lock is right for your requirements please contact our friendly team today.
Specification
| Dimensions | 77 (H) x 80 (D) |
|---|---|
| Guarantee | 25 Year |
| Lock Type | Mortice Deadlock |
| Lock Operation | Lever |
| Lock Backset | 53mm |
| Lock Centres | N/A |
| Follower Size (mm) | N/A |
| Faceplate Width | 25mm |
| Environmental Suitability | All |
| Mechanism | Dead Lock |
| Door Material Suitability | Wood |
| Max Door Thickness (mm) | 50 |
| Forend Finish | Polished Brass |
| Security Standards | BS3621:2007 |
