Description

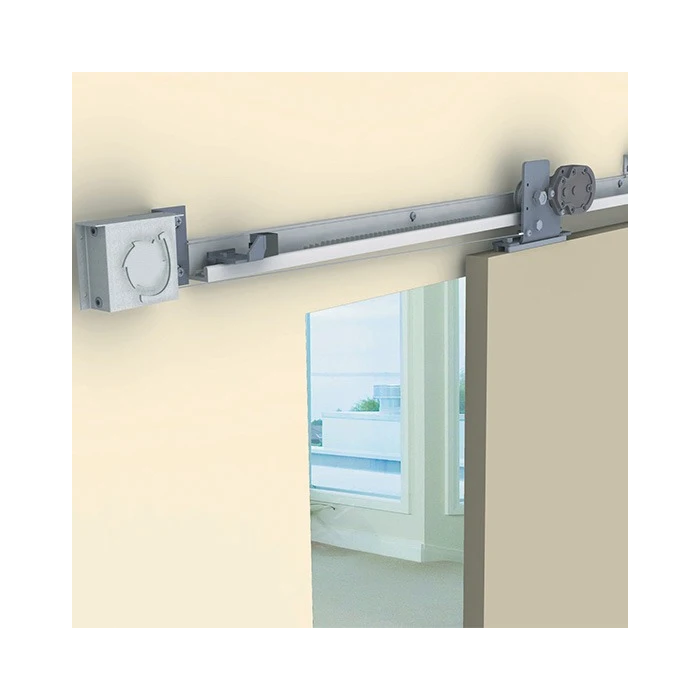

Henderson Sirocco self closing system - right hand opening - is suitable for metal or timber doors upto 80KG with a thickness between 30mm and 46mm. The new Sirocco system is a quiet, user friendly self closing system which brings the door leaf gently to a close. The integrated hydraulic soft stop brings the door to a safe and cushioned close making it ideal for not only the home but also disabled access systems or public areas. The internal door brake can also be adjusted to allow the user to dictate the speed of opening preventing damage to the door and system.
This sliding door kit contains:
- - Aluminium track 2200mm x 1
- - Leading hanger x 1
- - Trailing hanger x 1
- - Hydraulic Control Unit x 1
- - Closing brake rack x 1
- - Opening brake rack x 1
- - Power spring mounting bracket x 1
- - Height adjustment plates x 7
- - Power spring unit x 1
- - M5 X 16 pan head screw x 10
- - M8 x 35 hexagon bolt x 4
- - M5 x 12 pan head screw x 2
- - Anti rise bolt x 2
- - Spring washer (Countersunk 10mm dia) x 2
- - M5 X 12 pan head screw x 2
- - M4 X 6 pan head screw x 2
- - Guide roller x 1
- - Opening door stop x 1
- - Door stop roller x 1
- - M6 X 20 Hexagon bolt x 1
- - M5 X 12 pan head screw x 2
- - Closing door stop x 1
- - Wooden door plate x 2
- - Ø5 X 30 screws (Countersunk flat head) x 8
Applications this self closing system is good for:
- - Self closing system for a single door between 800 to 1200mm wide
- - Suitable for both domestic and commercial use
- - For use with interior applications only
- - Designed to give smooth and quiet operation
- - Complete with a hydraulically controlled soft close feature
- - Reliable fit and forget design and construction
- - Adjustable closing speed feature
- - Door brake to reduce opening speed to prevent damage to the door and system
- - Optional hold open unit giving adjustable time delay before self closing
- - Operational between temperature ranges of -10°C to 40°C
Door specification
- - Maximum door weight: 80kg
- - Minimum door thickness: 30mm
- - Maximum door thickness: 46mm
- - Minimum door width: 800mm
- - Maximum door width: 1200mm
- - Door material: Metal or timber
This set is also available as a left hand opening.
Not sure if this sliding gear set is right for your requirements?
If you are not sure if this sliding gear set is right for your requirements please contact our friendly team today to discuss your requirements.
Specification
| Guarantee | 12 months |
|---|
