Description

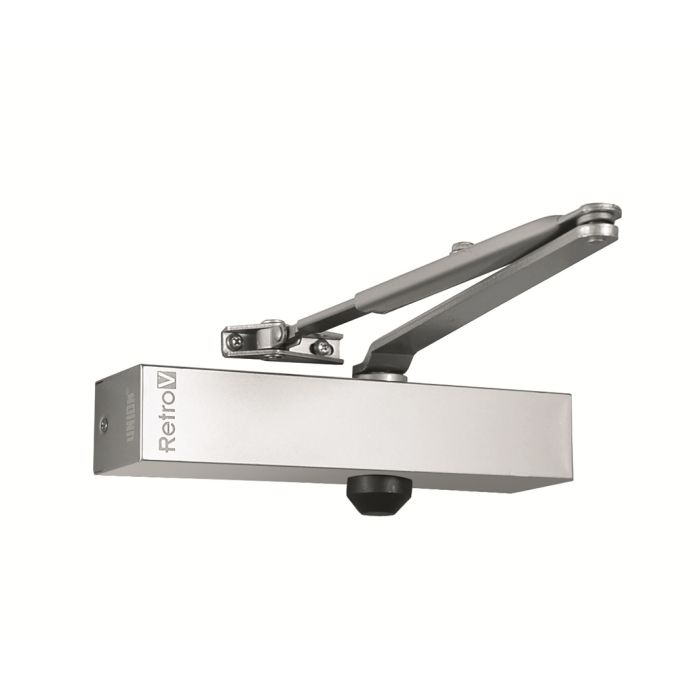

Union RetroV Variable Power Door Closer Silver
The new, easy way to replace Briton 2003 Series door closers and keep your existing door…the new, high performance RetroV from UNION
The Union RetroV uses the same fixing dimensions and footprint as most popular UK door closer designs, and is considered the ideal door closer retrofit solution. As opposed to traditional door closers, Union Retro closers blend with any application thanks to the square cover with silver finish and matching arms. The Union Retro door closers have a CE mark, which means they have succesfully completed performance testing to EN 1154 and fire testing to EN 1634-1. These door closers are, furthermore, Certifire approved and are suitable for use on timber fire doors up to FD120.
Application uses
- Identical fixing dimensions and footprint to popular UK door closer designs including Briton 2003, 2004 and 2003V
- Sympathetically designed to blend with other traditional door closers that have been used or are currently fixed to other doors nearby
- Suitable for both fire resistant timber and metal doors as well as other internal doors
- Sizes EN 3-4 wind through adjustable rack & pinion door closer - adjustable closing forces to suit application

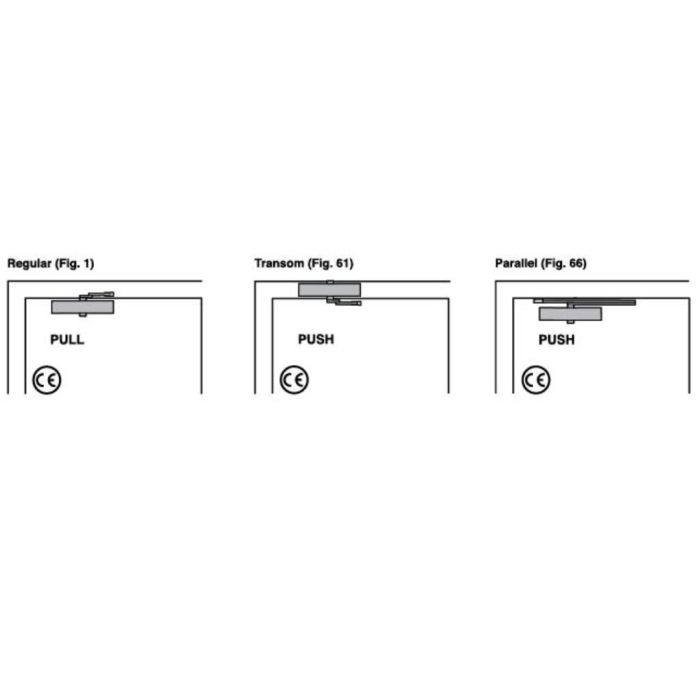

- Fully tested as both size EN3 and EN4 in all 3 fixing positions
- Ideal for retro fit but also highly suited to 1st fit applications
Features
- Aluminium body, steel armset
- Independent door speed and latch controls
- Non-handed with adjustable power for maximum flexibility
- Concealed fixings and adjustment controls
- Square steel cover (designed to match existing units)
- Fully adjustable flatform armset

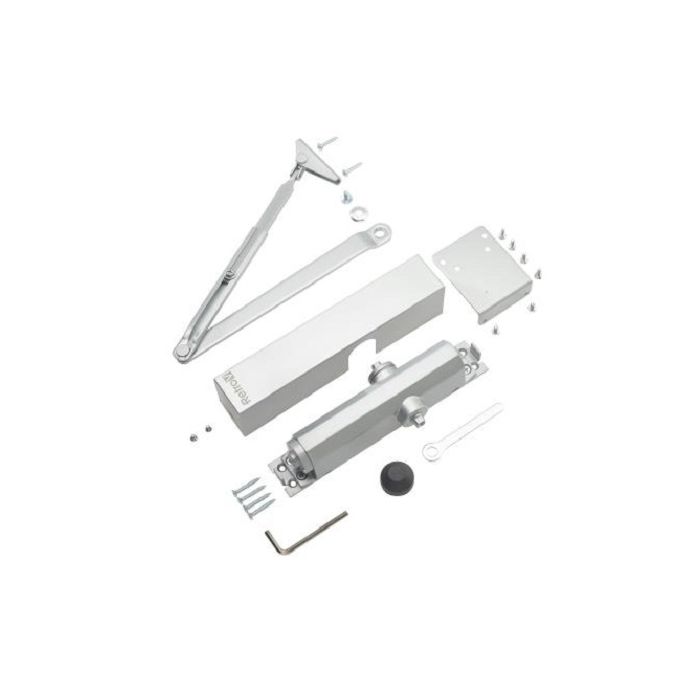

- Supplied complete with screws and parallel arm bracket
- Easy to use template and pictorial fitting instructions
- Max door width is 1100mm (all 3 install positions)
- Max door weight is 80kg (all 3 install positions)
- Max opening angle 130 degrees
- Independent, fully adjustable door speed and latch controls
- Non-handed
Standards
- Certificate Number: 0843-CPR-0359 (CE mark not valid if door width/mass exceeds values shown)
- 3rd party tested to BS EN 1154
- Included in fire tests to BS EN 1634 with assessment for use on timber fire doors with intumescent protection up to FD120 and metal doors up to FD240
Not sure if this Door closer is right for your requirements?
If you are not sure if this door closer is right for your requirements please contact our friendly team today.
Specification
| Finish | Silver |
|---|---|
| Guarantee | 10 Year |
| Type | Overhead |
| Power sizes | 3 to 4 |
| Finish | Silver |
| CE Certified | Yes |
| Certifire Approved | No |
| Application | Universal |
| Arm Assembly | Projecting Arm |
| Closing Speed | Variable |
| Latching Action | Yes |
| Stand Open | No |
| Back Check | No |
| Delayed Action | No |
